Stereo Hyundai Radio Wiring Color Codes Guide

What you can learn about stereo Hyundai radio wiring color codes? Here we will help you find a lot of info about stereo Hyundai radio wiring color codes! The wire color codes for a CEA aftermarket radio harness, which is included with most radios, are shown below. Here you can also find useful information about Hyundai car radio codes (if you have a locked device in your possession).

Is It Simple To Install Stereo Hyundai Color Codes Radio Wiring Harnesses

In most cases, an aftermarket wiring harness that clips onto the factory harness you removed off the rear of your factory radio during its removal is required when putting a new car stereo into your vehicle.
When you connect a wiring harness for your audio, you’re simply continuing the flow of an electrical circuit. Use the right tools for your connection, such as solder or “crimp caps.”

Hyundai Wiring Diagram Harness

Crimp caps are readily available at your local parts store, as well as at your local vehicle audio store. Soldering is a little more tricky. You’ll be using an extremely hot soldering iron to melt lead-free solder onto your wiring connection. I swear it’s not as difficult as it appears.

Here’s a small video that goes over wiring a harness in great detail. It’s crucial to pay attention to how neatly he keeps his cables. Keeping your wiring tidy can reduce the risk of wire shorting.

What Is The Purpose Of An Aftermarket Stereo Hyundai Color Codes Wiring Harness

In most cases, an aftermarket wiring harness that clips onto the factory harness you removed off the rear of your factory radio during its removal is required when putting a new car stereo into your vehicle.
The wire harness adapter you want is particular to your vehicle’s year, make, and model. What’s even cooler is that it uses the same CEA wiring color codes as indicated in the image above. All you have to do now is connect them by matching their colors.

Stereo Hyundai Wiring Color Codes

What Is The Best Way To Locate The Correct Wiring Harness

Believe the fact that finding the right harness for your car is not an art, and you don’t need a degree to do it. However, there are a few things you need to know before you can find out. You should know who they are if you don’t already. They’re all about your car and the alternatives it has or doesn’t have.

  1. What is the model year of your car?
  2. The make and model of your car?
  3. What is the make and model of your car?
  4. Do you have a factory-amped system in place?
  5. Do you already have an aftermarket radio?

If you responded yes to number 5, you are unlikely to require a radio harness. In most cases, shops use a wiring harness to install aftermarket radios if one is available for that car.

If you said yes to #4, you’ll need a specific harness that sends a low-level signal to your stock amplifier. You may be unaware that you have an amplifier or a factory-installed subwoofer. Dealerships want to take your money rather than discuss your sound system characteristics.

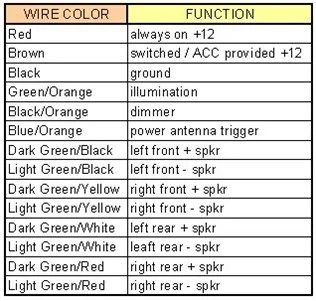

Hyundai Wiring Color Codes

I recommend using this simple car fit-guide source if you’re looking for a wire harness for your specific vehicle. Simply enter your vehicle details, and they’ll show you everything you need to know! You can contact us by sending us a message on Facebook if you have any questions. Now, when you already know much information about stereo Hyundai radio wiring color codes, you are eligible to solve a lot of problems that can occur in this area!
